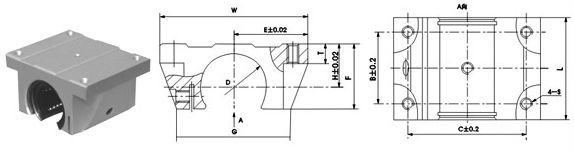

| Support rail unit-TBR…S + TBR…UU | ||||||
| Part No. | Shaft | Load rating | Mass (kg) | |||
| Rail | Case | d(mm) | C(N) | Co(N) | Case | Rail(kgf/m) |
| TBR16S | TBR16 UU | Ø16 | 392 | 490 | 0.18 | 2.45 |
| TBR20S | TBR20 UU | Ø20 | 784 | 1176 | 0.3 | 3.6 |
| TBR25S | TBR25 UU | Ø25 | 1568 | 2352 | 0.6 | 5.6 |
| TBR30S | TBR30 UU | Ø30 | 1764 | 2940 | 0.9 | 8 |
