Open

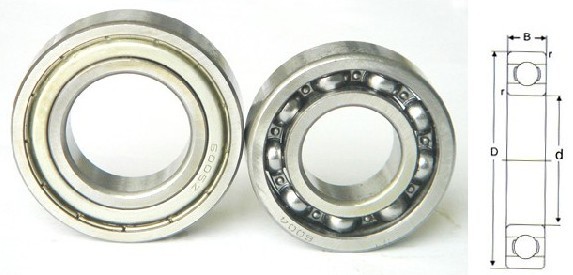

| Boundary dimensions(mm) | Basic load ratings(kN) | Limiting speeds(rpm) | Mass(Kg) | Bearing Number | |||||||||||||
| d | D | B | rs min | Cr | Cor | Grease | Oil | (Approx.) | |||||||||
| 10 | 26 | 8 | 0.3 | 4.55 | 1.96 | 29,000 | 34,000 | 0.019 | 6000 | ||||||||
| 12 | 28 | 8 | 0.3 | 5.1 | 2.39 | 26,000 | 30,000 | 0.021 | 6001 | ||||||||
| 15 | 32 | 9 | 0.3 | 5.6 | 2.83 | 22,000 | 26,000 | 0.03 | 6002 | ||||||||
| 17 | 35 | 10 | 0.3 | 6.8 | 3.35 | 20,000 | 24,000 | 0.039 | 6003 | ||||||||
| 20 | 42 | 12 | 0.6 | 9.4 | 5.05 | 18,000 | 21,000 | 0.069 | 6004 | ||||||||
| 25 | 47 | 12 | 0.6 | 10.1 | 5.85 | 15,000 | 18,000 | 0.08 | 6005 | ||||||||
| 30 | 55 | 13 | 1 | 13.2 | 8.3 | 13,000 | 15,000 | 0.116 | 6006 | ||||||||
| 35 | 62 | 14 | 1 | 16 | 10.3 | 12,000 | 14,000 | 0.155 | 6007 | ||||||||
| 40 | 68 | 15 | 1 | 16.8 | 11.5 | 10,000 | 12,000 | 0.19 | 6008 | ||||||||
| 45 | 75 | 16 | 1 | 21 | 15.1 | 9,200 | 11,000 | 0.237 | 6009 | ||||||||
| 50 | 80 | 16 | 1 | 21.8 | 16.6 | 8,400 | 9,800 | 0.261 | 6010 | ||||||||
| 55 | 90 | 18 | 1.1 | 28.3 | 21.2 | 7,700 | 9,000 | 0.388 | 6011 | ||||||||
| 60 | 95 | 18 | 1.1 | 29.5 | 23.2 | 7,000 | 8,300 | 0.414 | 6012 | ||||||||
| 65 | 100 | 18 | 1.1 | 30.5 | 25.2 | 6,500 | 7,700 | 0.421 | 6013 | ||||||||
| 70 | 110 | 20 | 1.1 | 38 | 31 | 6,100 | 7,100 | 0.604 | 6014 | ||||||||
| 75 | 115 | 20 | 1.1 | 39.5 | 33.5 | 5,700 | 6,700 | 0.649 | 6015 | ||||||||
| 80 | 125 | 22 | 1.1 | 47.5 | 40 | 5,300 | 6,200 | 0.854 | 6016 | ||||||||
| 85 | 130 | 22 | 1.1 | 49.5 | 43 | 5,000 | 5,900 | 0.89 | 6017 | ||||||||
| 90 | 140 | 24 | 1.5 | 58 | 49.5 | 4,700 | 5,600 | 1.02 | 6018 | ||||||||
| 95 | 145 | 24 | 1.5 | 60.5 | 54 | 4,500 | 5,300 | 1.08 | 6019 | ||||||||
| 100 | 150 | 24 | 1.5 | 60 | 54 | 4,200 | 5,000 | 1.15 | 6020 | ||||||||
| 105 | 160 | 26 | 2 | 72.5 | 65.5 | 4,000 | 4,700 | 1.59 | 6021 | ||||||||
| 110 | 170 | 28 | 2 | 82 | 73 | 3,800 | 4,500 | 1.96 | 6022 | ||||||||
| 120 | 180 | 28 | 2 | 85 | 79.5 | 3,500 | 4,100 | 2.07 | 6024 | ||||||||
| 130 | 200 | 33 | 2 | 106 | 101 | 3,200 | 3,800 | 3.16 | 6026 | ||||||||
| 140 | 210 | 33 | 2 | 110 | 109 | 3,000 | 3,500 | 3.35 | 6028 | ||||||||
| 150 | 225 | 35 | 2.1 | 126 | 126 | 2,800 | 3,200 | 4.08 | 6030 | ||||||||
| 160 | 240 | 38 | 2.1 | 143 | 144 | 2,600 | 3,000 | 5.05 | 6032 | ||||||||
| 170 | 260 | 42 | 2.1 | 168 | 172 | 2,400 | 2,800 | 6.76 | 6034 | ||||||||
| 180 | 280 | 46 | 2.1 | 189 | 199 | 2,300 | 2,700 | 8.8 | 6036 | ||||||||
| 190 | 290 | 46 | 2.1 | 197 | 215 | 2,100 | 2,500 | 9.18 | 6038 | ||||||||
| 200 | 310 | 51 | 2.1 | 218 | 243 | 2,000 | 2,400 | 11.9 | 6040 | ||||||||
| 22 | 44 | 12 | 0.6 | 955 | 515 | 17,000 | 20,000 | 0.074 | 60/22 | ||||||||
| 28 | 52 | 12 | 0.6 | 1,270 | 755 | 14,000 | 16,000 | 0.098 | 60/28 | ||||||||
| 32 | 58 | 13 | 1 | 1,200 | 820 | 12,000 | 15,000 | 0.129 | 60/32 | ||||||||
| Boundary dimensions(mm) | Basic load ratings(kN) | Limiting speeds(rpm) | Mass(Kg) | Bearing Number | |||||||||||||
| d | D | B | rs min | Cr | Cor | Grease | (Approx.) | ||||||||||
| 10 | 26 | 8 | 0.3 | 4.55 | 1.96 | 29,000 | 0.019 | 6000-2RS | |||||||||
| 12 | 28 | 8 | 0.3 | 5.1 | 2.39 | 26,000 | 0.021 | 6001-2RS | |||||||||
| 15 | 32 | 9 | 0.3 | 5.6 | 2.83 | 22,000 | 0.03 | 6002-2RS | |||||||||
| 17 | 35 | 10 | 0.3 | 6.8 | 3.35 | 20,000 | 0.039 | 6003-2RS | |||||||||
| 20 | 42 | 12 | 0.6 | 9.4 | 5.05 | 18,000 | 0.069 | 6004-2RS | |||||||||
| 25 | 47 | 12 | 0.6 | 10.1 | 5.85 | 15,000 | 0.08 | 6005-2RS | |||||||||
| 30 | 55 | 13 | 1 | 13.2 | 8.3 | 13,000 | 0.116 | 6006-2RS | |||||||||
| 35 | 62 | 14 | 1 | 16 | 10.3 | 12,000 | 0.155 | 6007-2RS | |||||||||
| 40 | 68 | 15 | 1 | 16.8 | 11.5 | 10,000 | 0.19 | 6008-2RS | |||||||||
| 45 | 75 | 16 | 1 | 21 | 15.1 | 9,200 | 0.237 | 6009-2RS | |||||||||
| 50 | 80 | 16 | 1 | 21.8 | 16.6 | 8,400 | 0.261 | 6010-2RS | |||||||||
| 55 | 90 | 18 | 1.1 | 28.3 | 21.2 | 7,700 | 0.388 | 6011-2RS | |||||||||
| 60 | 95 | 18 | 1.1 | 29.5 | 23.2 | 7,000 | 0.414 | 6012-2RS | |||||||||
| 65 | 100 | 18 | 1.1 | 30.5 | 25.2 | 6,500 | 0.421 | 6013-2RS | |||||||||
| 70 | 110 | 20 | 1.1 | 38 | 31 | 6,100 | 0.604 | 6014-2RS | |||||||||
| 75 | 115 | 20 | 1.1 | 39.5 | 33.5 | 5,700 | 0.649 | 6015-2RS | |||||||||
| 80 | 125 | 22 | 1.1 | 47.5 | 40 | 5,300 | 0.854 | 6016-2RS | |||||||||
| 85 | 130 | 22 | 1.1 | 49.5 | 43 | 5,000 | 0.89 | 6017-2RS | |||||||||
| 90 | 140 | 24 | 1.5 | 58 | 49.5 | 4,700 | 1.02 | 6018-2RS | |||||||||
| 95 | 145 | 24 | 1.5 | 60.5 | 54 | 4,500 | 1.08 | 6019-2RS | |||||||||
| 100 | 150 | 24 | 1.5 | 60 | 54 | 4,200 | 1.15 | 6020-2RS | |||||||||
| 105 | 160 | 26 | 2 | 72.5 | 65.5 | 4,000 | 1.59 | 6021-2RS | |||||||||
| 110 | 170 | 28 | 2 | 82 | 73 | 3,800 | 1.96 | 6022-2RS | |||||||||
| 120 | 180 | 28 | 2 | 85 | 79.5 | 3,500 | 2.07 | 6024-2RS | |||||||||
| 130 | 200 | 33 | 2 | 106 | 101 | 3,200 | 3.16 | 6026-2RS | |||||||||
| 140 | 210 | 33 | 2 | 110 | 109 | 3,000 | 3.35 | 6028-2RS | |||||||||
| 150 | 225 | 35 | 2.1 | 126 | 126 | 2,800 | 4.08 | 6030-2RS | |||||||||
| 160 | 240 | 38 | 2.1 | 143 | 144 | 2,600 | 5.05 | 6032-2RS | |||||||||
| 22 | 44 | 12 | 0.6 | 955 | 515 | 13,000 | 0.074 | 60/22-2RS | |||||||||
| 28 | 52 | 12 | 0.6 | 1,270 | 755 | 10,000 | 0.098 | 60/28-2RS | |||||||||
| 32 | 58 | 13 | 1 | 1,200 | 820 | 8,700 | 0.129 | 60/32-2RS | |||||||||
| 10 | 26 | 8 | 0.3 | 4.55 | 1.96 | 29,000 | 0.019 | 6000-ZZ | |||||||||
| 12 | 28 | 8 | 0.3 | 5.1 | 2.39 | 26,000 | 0.021 | 6001-ZZ | |||||||||
| 15 | 32 | 9 | 0.3 | 5.6 | 2.83 | 22,000 | 0.03 | 6002-ZZ | |||||||||
| 17 | 35 | 10 | 0.3 | 6.8 | 3.35 | 20,000 | 0.039 | 6003-ZZ | |||||||||
| 20 | 42 | 12 | 0.6 | 9.4 | 5.05 | 18,000 | 0.069 | 6004-ZZ | |||||||||
| 25 | 47 | 12 | 0.6 | 10.1 | 5.85 | 15,000 | 0.08 | 6005-ZZ | |||||||||
| 30 | 55 | 13 | 1 | 13.2 | 8.3 | 13,000 | 0.116 | 6006-ZZ | |||||||||
| 35 | 62 | 14 | 1 | 16 | 10.3 | 12,000 | 0.155 | 6007-ZZ | |||||||||
| 40 | 68 | 15 | 1 | 16.8 | 11.5 | 10,000 | 0.19 | 6008-ZZ | |||||||||
| 45 | 75 | 16 | 1 | 21 | 15.1 | 9,200 | 0.237 | 6009-ZZ | |||||||||
| 50 | 80 | 16 | 1 | 21.8 | 16.6 | 8,400 | 0.261 | 6010-ZZ | |||||||||
| 55 | 90 | 18 | 1.1 | 28.3 | 21.2 | 7,700 | 0.388 | 6011-ZZ | |||||||||
| 60 | 95 | 18 | 1.1 | 29.5 | 23.2 | 7,000 | 0.414 | 6012-ZZ | |||||||||
| 65 | 100 | 18 | 1.1 | 30.5 | 25.2 | 6,500 | 0.421 | 6013-ZZ | |||||||||
| 70 | 110 | 20 | 1.1 | 38 | 31 | 6,100 | 0.604 | 6014-ZZ | |||||||||
| 75 | 115 | 20 | 1.1 | 39.5 | 33.5 | 5,700 | 0.649 | 6015-ZZ | |||||||||
| 80 | 125 | 22 | 1.1 | 47.5 | 40 | 5,300 | 0.854 | 6016-ZZ | |||||||||
| 85 | 130 | 22 | 1.1 | 49.5 | 43 | 5,000 | 0.89 | 6017-ZZ | |||||||||
| 90 | 140 | 24 | 1.5 | 58 | 49.5 | 4,700 | 1.02 | 6018-ZZ | |||||||||
| 95 | 145 | 24 | 1.5 | 60.5 | 54 | 4,500 | 1.08 | 6019-ZZ | |||||||||
| 100 | 150 | 24 | 1.5 | 60 | 54 | 4,200 | 1.15 | 6020-ZZ | |||||||||
| 105 | 160 | 26 | 2 | 72.5 | 65.5 | 4,000 | 1.59 | 6021-ZZ | |||||||||
| 110 | 170 | 28 | 2 | 82 | 73 | 3,800 | 1.96 | 6022-ZZ | |||||||||
| 120 | 180 | 28 | 2 | 85 | 79.5 | 3,500 | 2.07 | 6024-ZZ | |||||||||
| 130 | 200 | 33 | 2 | 106 | 101 | 3,200 | 3.16 | 6026-ZZ | |||||||||
| 140 | 210 | 33 | 2 | 110 | 109 | 3,000 | 3.35 | 6028-ZZ | |||||||||
| 150 | 225 | 35 | 2.1 | 126 | 126 | 2,800 | 4.08 | 6030-ZZ | |||||||||
| 160 | 240 | 38 | 2.1 | 143 | 144 | 2,600 | 5.05 | 6032-ZZ | |||||||||
| 22 | 44 | 12 | 0.6 | 955 | 515 | 13,000 | 0.074 | 60/22-ZZ | |||||||||
| 28 | 52 | 12 | 0.6 | 1,270 | 755 | 10,000 | 0.098 | 60/28-ZZ | |||||||||
| 32 | 58 | 13 | 1 | 1,200 | 820 | 8,700 | 0.129 | 60/32-ZZ | |||||||||
| Boundary dimensions(mm) | Basic load ratings(kN) | Limiting speeds(rpm) | Mass(Kg) | Bearing Number | |||||||||||||
| d | D | B | rs min | Cr | Cor | Grease | Oil | (Approx.) | |||||||||
| 15 | 32 | 9 | 0.3 | 5.6 | 2.83 | 22,000 | 26,000 | 0.032 | 6002-ZNR | ||||||||
| 17 | 35 | 10 | 0.3 | 6.8 | 3.35 | 20,000 | 24,000 | 0.041 | 6003-ZNR | ||||||||
| 20 | 42 | 12 | 0.6 | 9.4 | 5.05 | 18,000 | 21,000 | 0.071 | 6004-ZNR | ||||||||
| 25 | 47 | 12 | 0.6 | 10.1 | 5.85 | 15,000 | 18,000 | 0.084 | 6005-ZNR | ||||||||
| 30 | 55 | 13 | 1 | 13.2 | 8.3 | 13,000 | 15,000 | 0.12 | 6006-ZNR | ||||||||
| 35 | 62 | 14 | 1 | 16 | 10.3 | 12,000 | 14,000 | 0.162 | 6007-ZNR | ||||||||
| 40 | 68 | 15 | 1 | 16.8 | 11.5 | 10,000 | 12,000 | 0.199 | 6008-ZNR | ||||||||
| 45 | 75 | 16 | 1 | 21 | 15.1 | 9,200 | 11,000 | 0.247 | 6009-ZNR | ||||||||
| 50 | 80 | 16 | 1 | 21.8 | 16.6 | 8,400 | 9,800 | 0.272 | 6010-ZNR | ||||||||
| 55 | 90 | 18 | 1.1 | 28.3 | 21.2 | 7,700 | 9,000 | 0.405 | 6011-ZNR | ||||||||
| 60 | 95 | 18 | 1.1 | 29.5 | 23.2 | 7,000 | 8,300 | 0.432 | 6012-ZNR | ||||||||
| 65 | 100 | 18 | 1.1 | 30.5 | 25.2 | 6,500 | 7,700 | 0.44 | 6013-ZNR | ||||||||
| 70 | 110 | 20 | 1.1 | 38 | 31 | 6,100 | 7,100 | 0.625 | 6014-ZNR | ||||||||
| 75 | 115 | 20 | 1.1 | 39.5 | 33.5 | 5,700 | 6,700 | 0.671 | 6015-ZNR | ||||||||
| 80 | 125 | 22 | 1.1 | 47.5 | 40 | 5,300 | 6,200 | 0.895 | 6016-ZNR | ||||||||
| 85 | 130 | 22 | 1.1 | 49.5 | 43 | 5,000 | 5,900 | 0.933 | 6017-ZNR | ||||||||
| 90 | 140 | 24 | 1.5 | 58 | 49.5 | 4,700 | 5,600 | 1.07 | 6018-ZNR | ||||||||
| 95 | 145 | 24 | 1.5 | 60.5 | 54 | 4,500 | 5,300 | 1.13 | 6019-ZNR | ||||||||
| 100 | 150 | 24 | 1.5 | 60 | 54 | 4,200 | 5,000 | 1.2 | 6020-ZNR | ||||||||
| 105 | 160 | 26 | 2 | 72.5 | 65.5 | 4,000 | 4,700 | 1.64 | 6021-ZNR | ||||||||
| 110 | 170 | 28 | 2 | 82 | 73 | 3,800 | 4,500 | 2.04 | 6022-ZNR | ||||||||
| 120 | 180 | 28 | 2 | 85 | 79.5 | 3,500 | 4,100 | 2.16 | 6024-ZNR | ||||||||
| 130 | 200 | 33 | 2 | 106 | 101 | 3,200 | 3,800 | 3.26 | 6026-ZNR | ||||||||
